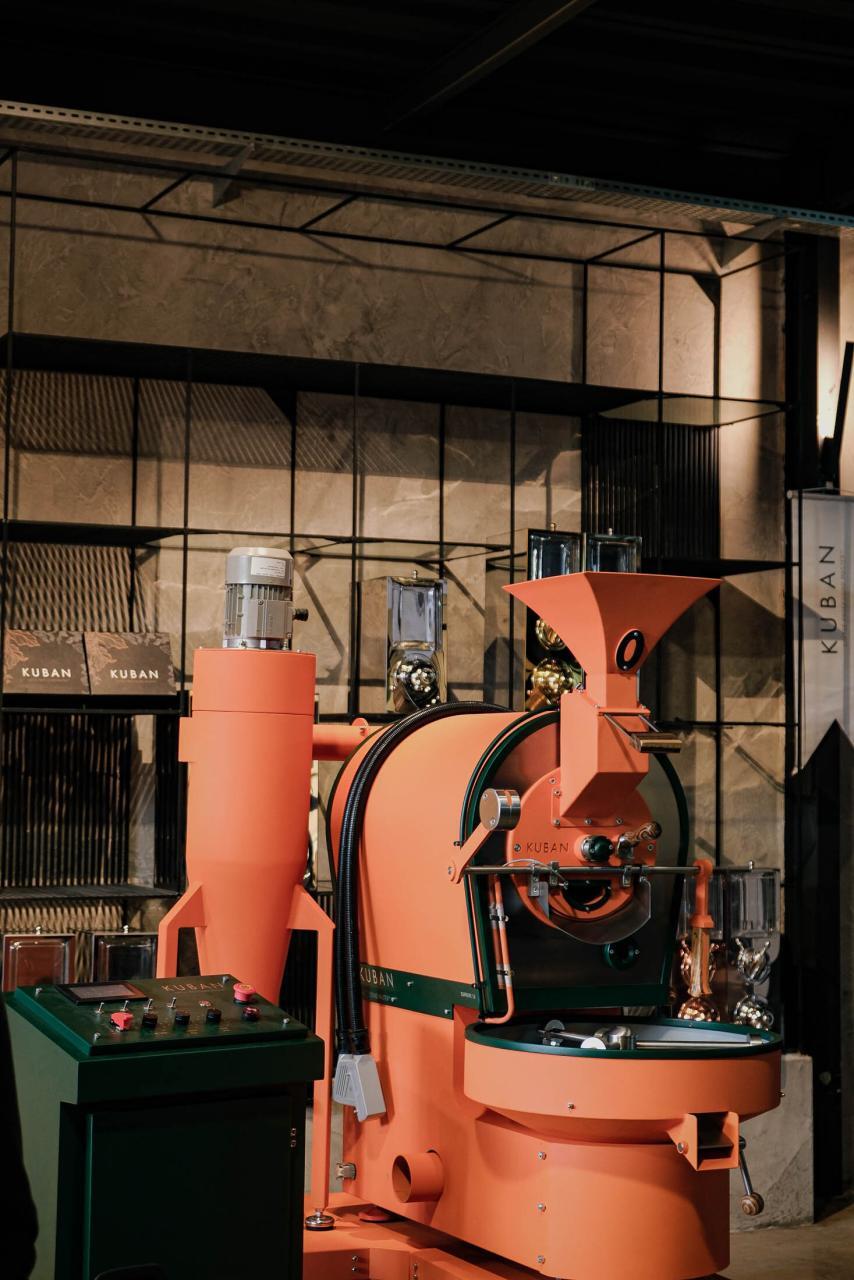

KUBAN Supreme V2 is a 6 kg capacity coffee roasting machine designed for medium-sized coffee businesses. It offers a high-performance and environmentally friendly solution, standing out with its advanced technology, robust construction, and user-friendly interface.
Technical Specifications
- Capacity: 6 kg / Hourly Output: 24 kg
- Dimensions (W x H x D): 123 x 183 x 198 cm
- Weight: 630 kg (including cooling cyclone)
- Voltage: 220–380 V
- Frequency: 50–60 Hz
- Heat Source: LPG or Natural Gas
- Heating System: Premix Burner
- Burner Power: 32.5 kW/h
- Gas Consumption:
- LPG: 1.17 m³/h
- Natural Gas: 2.92 m³/h
- Number of Motors: 4
- Power Consumption: 1.84 kW/h
- Roasting Time: 8–15 minutes
- Cooling Time: 3 minutes
- Cooling Cyclone: Included
- Safety Device: Included
- Airflow Control: VFD (Variable Frequency Drive) and Pressure Adjustment (PA)
- Sensors:
Key Features
- High-Efficiency Premix Burner
Premix burner technology provides an eco-friendly roasting process by reducing CO, CO₂, and NOX emissions. It also ensures energy efficiency, helping to lower operational costs. - Advanced Automation and Control
Equipped with a 15″ Siemens touchscreen and Siemens PLC system, the machine allows users to precisely manage and customize every stage of the roasting process. - KUBAN Roast Manager Software
KUBAN Roast Manager is a proprietary software developed to manage the entire roasting workflow. Key features include:
- Preheat
- End-Day Summary
- Roasting Application
- Profile Creation Module
- Coffee Database
- Calendar Tool
- Maintenance Assistant
- Settings Panel
- Cropster Integration
Thanks to its built-in Ethernet port, the machine is fully compatible with Cropster Roasting Intelligence (RI). This integration facilitates data tracking, analysis, and optimization of the roasting process.
Design and Durability
The KUBAN Supreme V2 is built with high-quality materials, ensuring long-lasting durability and reliability. Its user-friendly design also allows for easy maintenance and cleaning.
The KUBAN Supreme V2 is an ideal coffee roasting machine for medium-sized businesses. It stands out with its high performance, advanced technology, and environmentally conscious features. With a customizable interface and intuitive controls, it enables a more efficient, consistent, and controlled roasting process.
