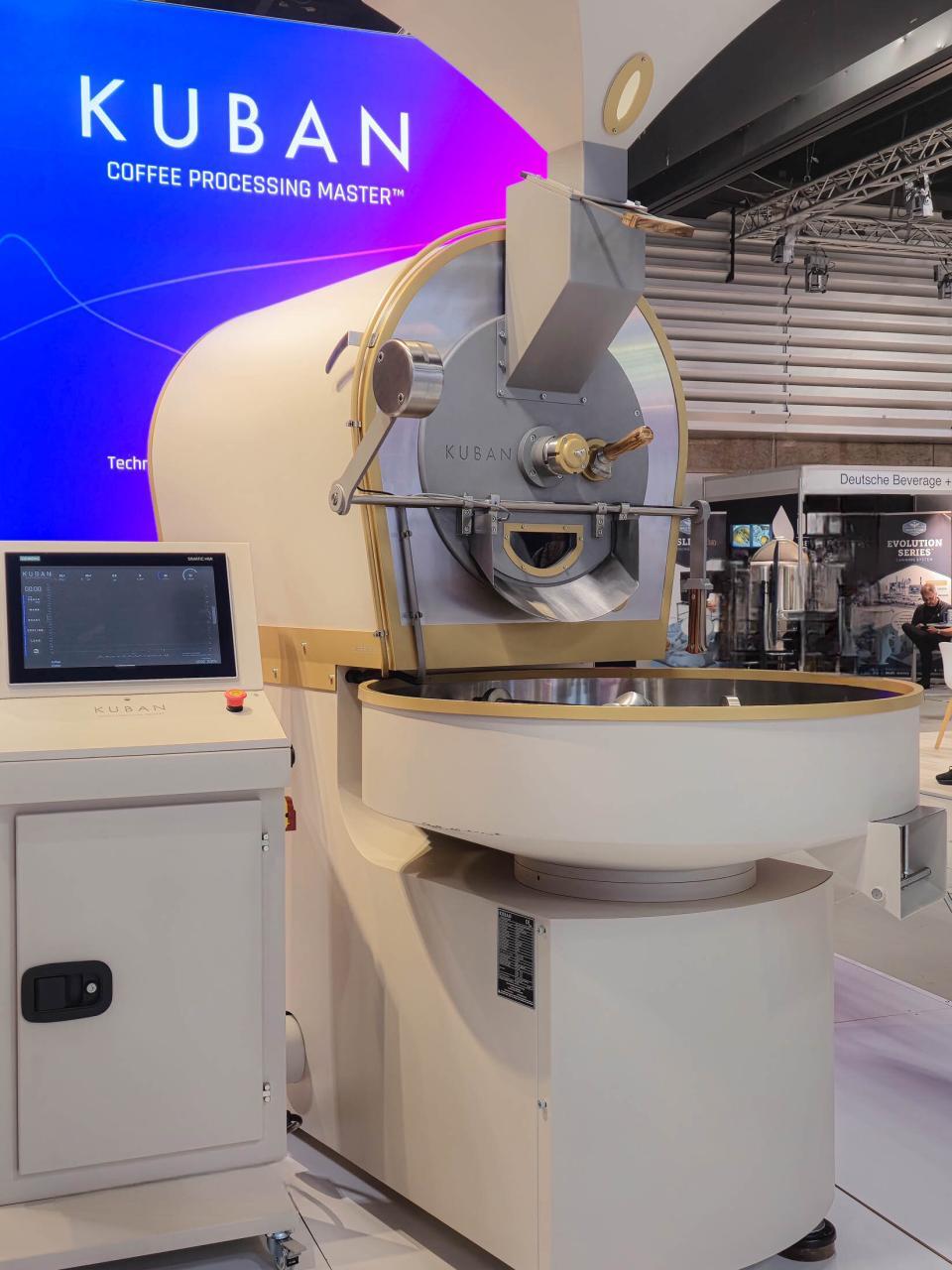

The KUBAN Supreme V2 12 kg coffee roaster is a professional solution that combines high performance and energy efficiency for medium-sized coffee businesses. It stands out with its advanced technology and user-friendly interface.
Technical Specifications
- Capacity: 12 kg / Hourly Output: 48 kg
- Dimensions (W x H x D): 145 x 212 x 216 cm
- Weight: 700 kg (including cooling cyclone)
- Voltage: 380 V
- Frequency: 50–60 Hz
- Heat Source: LPG or Natural Gas
- Heating System: Premix Burner
- Burner Power: 32.5 kW/h
- Gas Consumption:
- LPG: 1.50 m³/h
- Natural Gas: 3.75 m³/h
- Number of Motors: 4
- Power Consumption: 2.24 kW/h
- Roasting Time: 8–15 minutes
- Cooling Time: 3 minutes
- Cooling Cyclone: Included
- Safety Device: Included
- Airflow Control: VFD (Variable Frequency Drive) and Pressure Adjustment (PA)
- Sensors:
- Gas Pressure Sensor
- Inlet Temperature Sensor
- Temperature and Humidity Sensor
- Airflow Pressure Sensor
Key Features
High-Efficiency Premix Burner
The premix burner technology offers an eco-friendly roasting process by significantly reducing CO, CO₂, and NOX emissions. It also contributes to energy savings, helping lower overall operational costs.
Advanced Automation and Control
Equipped with a 15″ Siemens touchscreen and Siemens PLC system, the Supreme V2 allows users to precisely monitor and customize every stage of the roasting process.
KUBAN Roast Manager Software
Developed specifically for roast management, the KUBAN Roast Manager software provides full control over operations with the following modules:
- Preheat
- End-Day Summary
- Roasting Application
- Profile Creation Module
- Coffee Database
- Calendar Tool
- Maintenance Assistant
- Settings Panel
Cropster Integration
Thanks to its Ethernet port, the machine is fully compatible with Cropster Roasting Intelligence (RI). This integration makes it easier to track, analyze, and optimize roasting data.
Design & Durability
The KUBAN Supreme V2 12 kg is built with high-quality materials to ensure durability and long-lasting performance. Its user-friendly design allows for easy maintenance and efficient cleaning.
The KUBAN Supreme V2 12 kg coffee roaster is an ideal solution for medium-sized coffee businesses. It combines high performance with advanced technology and eco-conscious features. With its intuitive interface and customizable control, it transforms the roasting process into a more efficient and precise operation.
